General Profiling

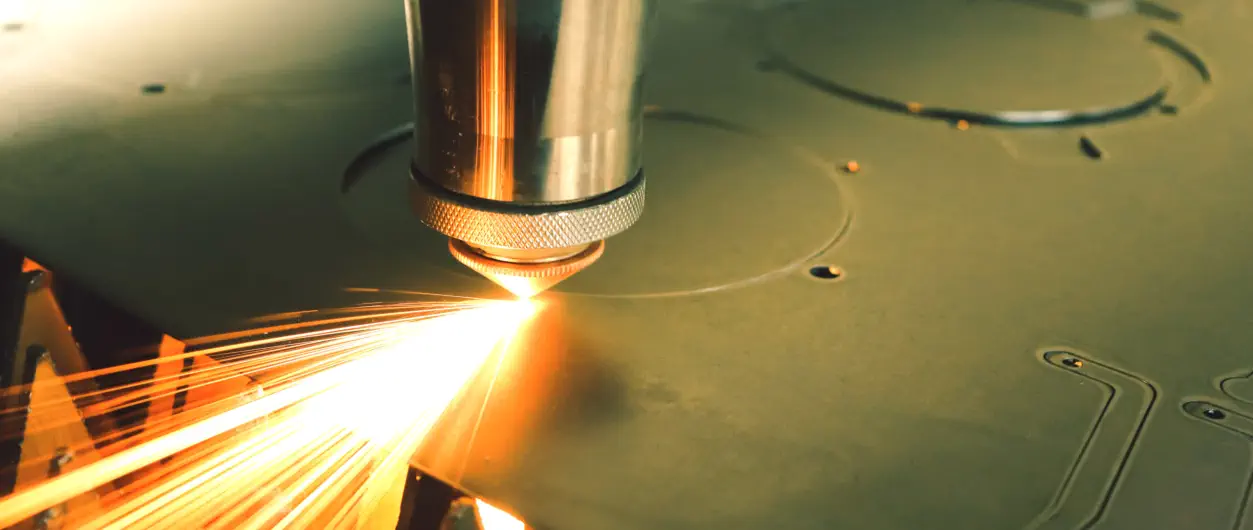

CNC-Laser Cutting
Our laser cutting machines are able to cut a wide variety of materials including: • Mild steel, S235, S275, S355, hot and cold rolled sheets. • Floor plates or Vastrap / Checker plate. • Hard wearing plates. • Copper. • Brass. • Tubes. • Stainless steel – Various grades. • 3CR12. • Aluminium - Various grades. • Spring Steel. • Perspex, plastics, titanium, perforated plates, channels and angles. Technical specifications Maximum Cutting Size: •13 000mm X 3000mm. Maximum Thickness • Mild Steel : 30mm. • Stainless Steel : 40mm. • 3CR12 : 40mm. • Aluminium : 25mm. • Brass : 10mm. • Copper : 10mm • Tube cutting : up to 280 diameter. Other Information • +- 0.2mm - 0.3mm tolerances, dependant on the type and thickness of the material to be processed. • All parts are deburred before despatch. • Flattening of plate is done after cutting upon request.CNC-HD Plasma Cutting
We are able to cut a wide variety of materials including: • Commercial quality, S275, S355 and many other graded steels. • Floor plates or Vastrap / Checker plate. • Hard wearing plates (SS10/200). • Stainless steels – Various grades. • 3CR12. • Aluminium - Various grades Technical Specifications Maximum cutting Size • 12 000mm X 2 500mm. Maximum material thickness Ferrous and non ferrous metals: 25mm. Other Information • +- 1mm tolerances, dependant on the type and thickness of the material to be processed. • Smooth cut surface. • Pickle & passivate of Stainless steel on request. • Flattening of plate is done after cutting.

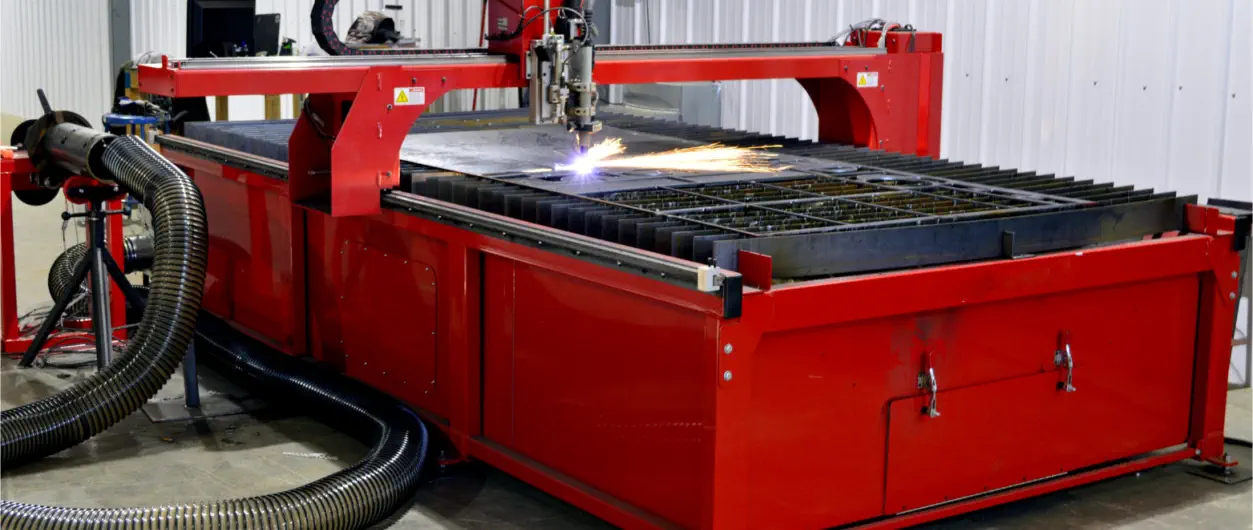

Plasma Cutting
We supply and cut various grades of stainlesssteels and aluminium. Technical specifications Maximum Cutting Size: • 22 000mm x 3 000mm. Maximum material thickness • Stainless steel : 50mm • Aluminium : 50mm • S355JR-AR : 45mm Other information • Pickle and passivate of stainless steel on request. • +- 2mm - 3mm tolerances, with a slight taper “The taper increase as thickness increases” dependant on the type, thickness and contours of the parts to be cut.CNC-Flame Cutting
We are able to cut a wide variety of materials using our CNC Flame Cutting machines including: Mild steel, S275, S355, JO + N, and various other graded material. • Floor plates or Vastrap / Checker plate. • Bennox – SS10/100. • ROQ-TUF. • ROQ-LAST. • Domex - Various grades. • Weldox - Various grades. • Hardox - Various grades. Technical specifications Maximum Cutting Size: • 22 000mm x 2 500mm. Maximum material thickness • Mild Steel : from 5mm - 300 mm. Other information • All cut parts are fettled before despatch. • Up to +/- 2mm - 3mm cutting tolerance, dependant on material thickness and contours to be cut. • Flattening of plate is done after cutting on request. • Maximum lifting capacity is 10 tonnes.Guillotine Cutting

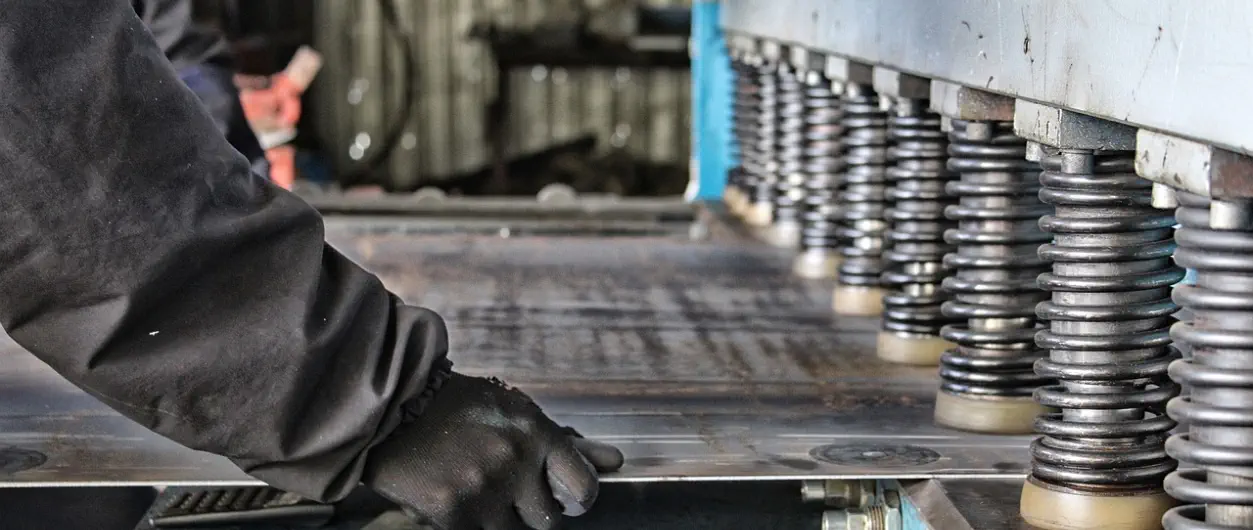

We are able to cut a wide variety of materials including: • Hot and cold rolled steels in ferrous and non-ferrous metals. • Floor plates/ vastrap/ checker plates Technical specifications • Maximum length : 3 000mm. • Mild steels : up to 16mm thickness. • Stainless steels : up to 12mm thickness. • Flat and Angled bars made to order.CNC-Rolling

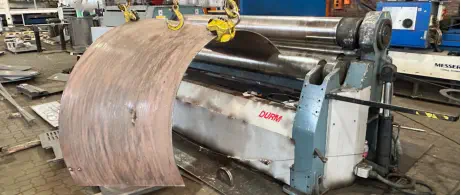

We offer CNC Rolling on state of the art 4 roll set equipment, which offers industry leading accuracy. Technical Specifications Maximum material thickness and width • 3000mm x 50mm thick in mild steel (Much thicker if parts are narrower). • 3000 mm x 25mm thick in stainless steel (Unlimited thickness if parts are shorter). • Quenched and Tempered steels – depending on tensile strength up to • 25mm thick (Much thicker if parts are narrower). Other Information • Minimum rolling diameters apply. • Maximum part weight : 10 tonnes. • Tacking and/or welding will be done on rolled parts on request

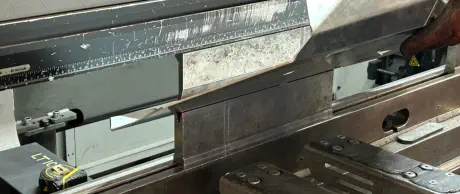

CNC-Bending
Our 12 meter / 2000 ton press brake is the largest in South Africa. Technical Specifications • Maximum length of part : 12 000mm. • Maximum Tonnage : 2000 tonnes. • Maximum part weight : 10 tonnes. • 6 axis backstop. • Angle Measuring system. • 3 point Bending and Air Bending techniques. • Full 3D Software. • Angled bar made to order.
CNC-Machining Centre
• 3 Axis milling • Thread milling • Helix milling • Counter boring • CNC Lathe •Live Tooling •Travel of 300.0mm OD & 1100mm in length Other information • High production runs • Automatic Pallet Change • Automatic Tool ChangeDrilling
• Counter sinking • Tapping • ReamingTo contact our team please call or email us:
Tel: +27 011 062 3200 Email: sales@generalprofiling.co.za Address: 31 Industrial Road Amalgam, Johannesburg 2000 South AfricaYou can join us on
© Copyright 2024 General Profiling (PTY) LTD | Terms & Conditions
CAD-Team (Computer Aided Design)
Computer-aided design (CAD) is the use of computer-based software to aid in design processes. CAD software is frequently used by different types of professionals, including engineers, architects, and designers. It allows them to create detailed 2D drawings and 3D models of real-world products before they are manufactured. CAD enables designers to visualize and analyze their designs, make modifications, and optimize them for various purposes. Here are some key points about computer-aided design (CAD): • CAD stands for computer-aided design and is a way to digitally create 2D drawings and 3D models of real-world products before they're ever manufactured. • CAD software allows designers to create design simulations of real-world goods and products in 2D or 3D. • It is widely used in various industries, including architecture, engineering, manufacturing, and product design. • CAD software provides tools and features that enable precise measurements, accurate modeling, and efficient design iterations. • With CAD, designers can easily make changes to their designs, explore different design options, and analyze the performance of their products. • CAD models can be used for visualization, virtual prototyping, simulation, and documentation purposes. • The use of CAD helps streamline the design process, reduce errors, improve productivity, and enhance collaboration among team members. In summary, computer-aided design (CAD) is a powerful tool that allows designers to create detailed and accurate digital representations of real-world products. It plays a crucial role in various industries by enabling efficient design processes and facilitating innovation.
Bending

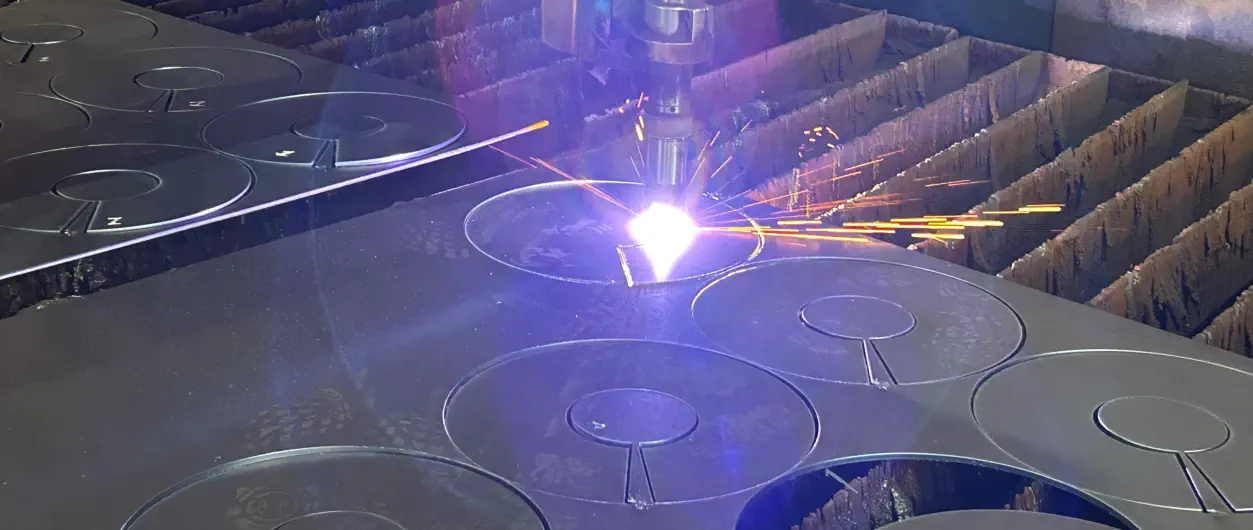

Bending of parts to high standardsPlasma cutting

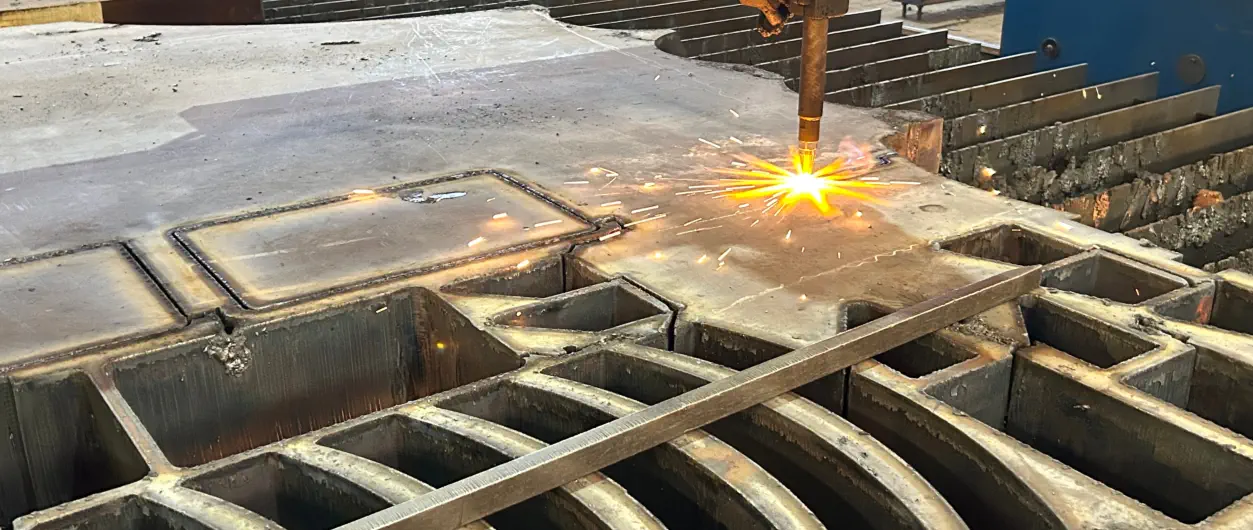

Clean elegant on the sideOXY Flame Cutting
Cutting up to 300mm thickLaser Cutting
Fiber laser cutting.OUR
SERVICES.
cnc-laser cutting, cnc-flame cutting, cnc-plasma cutting, hd- plasma cutting, cnc-bending, cnc machining,cnc-rolling, chamfering and more. a whole suite of services.
General Profiling
CNC-Laser Cutting
Our laser cutting machines are able to cut a wide variety of materials including: • Mild steel, S235, S275, S355, hot and cold rolled sheets. • Floor plates or Vastrap / Checker plate. • Hard wearing plates. • Copper. • Brass. • Tubes. • Stainless steel – Various grades. • 3CR12. • Aluminium - Various grades. • Spring Steel. • Perspex, plastics, titanium, perforated plates, channels and angles. Technical specifications Maximum Cutting Size: •13 000mm X 3000mm. Maximum Thickness • Mild Steel : 30mm. • Stainless Steel : 40mm. • 3CR12 : 40mm. • Aluminium : 25mm. • Brass : 10mm. • Copper : 10mm • Tube cutting : up to 280 diameter. Other Information • +- 0.2mm - 0.3mm tolerances, dependant on the type and thickness of the material to be processed. • All parts are deburred before despatch. • Flattening of plate is done after cutting upon request.

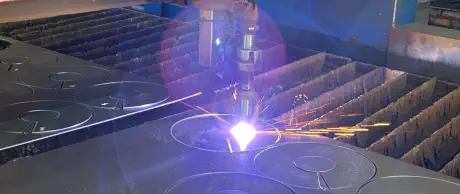

CNC-HD Plasma Cutting
We are able to cut a wide variety of materials including: • Commercial quality, S275, S355 and many other graded steels. • Floor plates or Vastrap / Checker plate. • Hard wearing plates (SS10/200). • Stainless steels – Various grades. • 3CR12. • Aluminium - Various grades Technical Specifications Maximum cutting Size • 12 000mm X 2 500mm. Maximum material thickness Ferrous and non ferrous metals: 25mm. Other Information • +- 1mm tolerances, dependant on the type and thickness of the material to be processed. • Smooth cut surface. • Pickle & passivate of Stainless steel on request. • Flattening of plate is done after cutting.Plasma Cutting
We supply and cut various grades of stainlesssteels and aluminium. Technical specifications Maximum Cutting Size: • 22 000mm x 3 000mm. Maximum material thickness • Stainless steel : 50mm • Aluminium : 50mm • S355JR-AR : 45mm Other information • Pickle and passivate of stainless steel on request. • +- 2mm - 3mm tolerances, with a slight taper “The taper increase as thickness increases” dependant on the type, thickness and contours of the parts to be cut.
CNC-Flame Cutting
We are able to cut a wide variety of materials using our CNC Flame Cutting machines including: Mild steel, S275, S355, JO + N, and various other graded material. • Floor plates or Vastrap / Checker plate. • Bennox – SS10/100. • ROQ-TUF. • ROQ-LAST. • Domex - Various grades. • Weldox - Various grades. • Hardox - Various grades. Technical specifications Maximum Cutting Size: • 22 000mm x 2 500mm. Maximum material thickness • Mild Steel : from 5mm - 300 mm. Other information • All cut parts are fettled before despatch. • Up to +/- 2mm - 3mm cutting tolerance, dependant on material thickness and contours to be cut. • Flattening of plate is done after cutting on request. • Maximum lifting capacity is 10 tonnes.Guillotine Cutting
We are able to cut a wide variety of materials including: • Hot and cold rolled steels in ferrous and non-ferrous metals. • Floor plates/ vastrap/ checker plates Technical specifications • Maximum length : 3 000mm. • Mild steels : up to 16mm thickness. • Stainless steels : up to 12mm thickness. • Flat and Angled bars made to order.

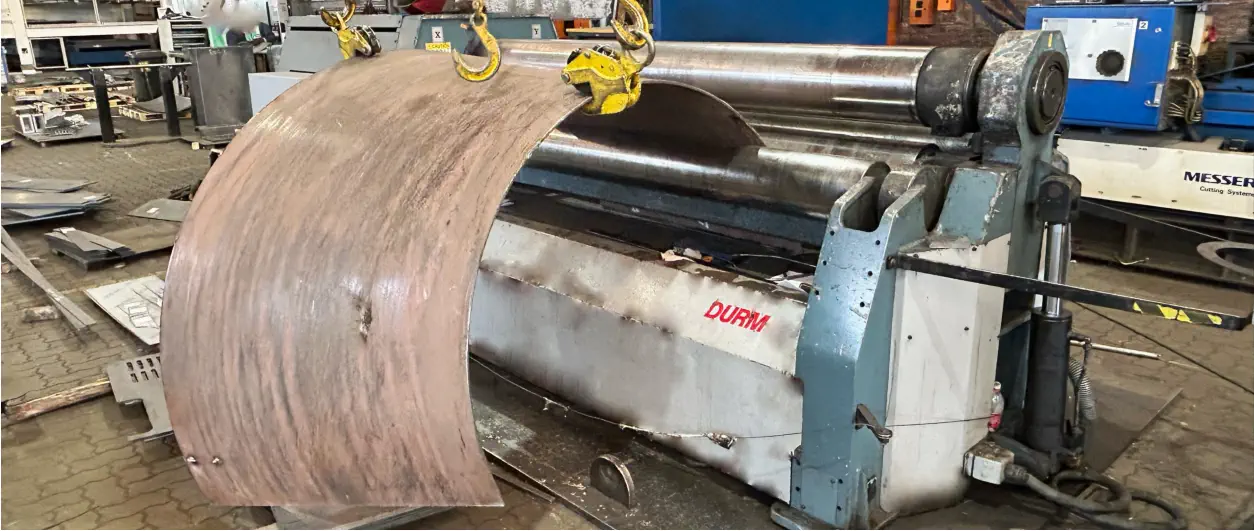

CNC-Rolling
We offer CNC Rolling on state of the art 4 roll set equipment, which offers industry leading accuracy. Technical Specifications Maximum material thickness and width • 3000mm x 50mm thick in mild steel (Much thicker if parts are narrower). • 3000 mm x 25mm thick in stainless steel (Unlimited thickness if parts are shorter). • Quenched and Tempered steels – depending on tensile strength up to • 25mm thick (Much thicker if parts are narrower). Other Information • Minimum rolling diameters apply. • Maximum part weight : 10 tonnes. • Tacking and/or welding will be done on rolled parts on request

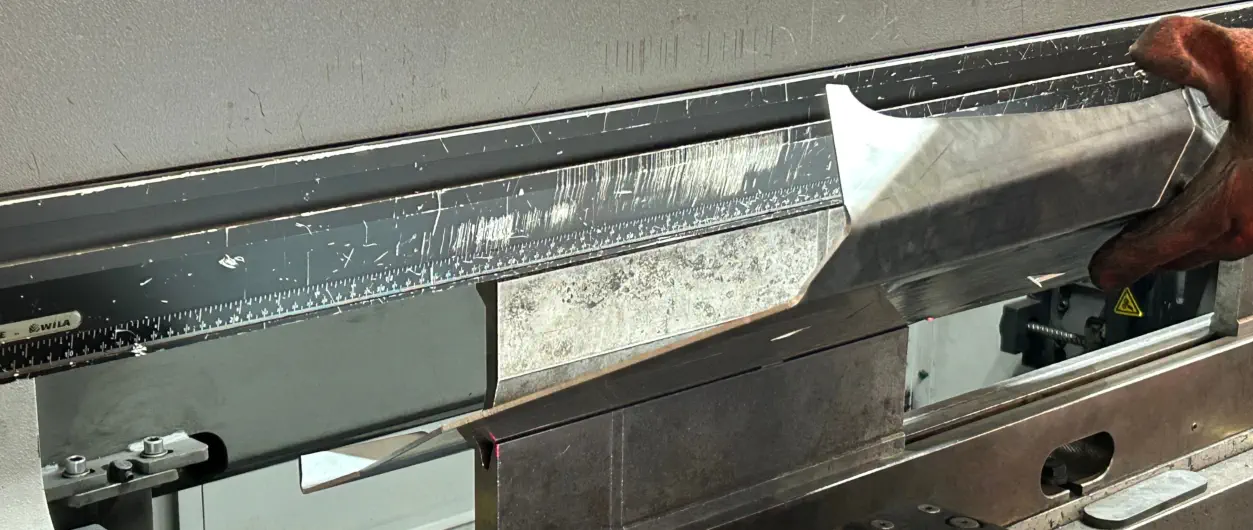

CNC-Bending
Our 12 meter / 2000 ton press brake is the largest in South Africa. Technical Specifications • Maximum length of part : 12 000mm. • Maximum Tonnage : 2000 tonnes. • Maximum part weight : 10 tonnes. • 6 axis backstop. • Angle Measuring system. • 3 point Bending and Air Bending techniques. • Full 3D Software. • Angled bar made to order.

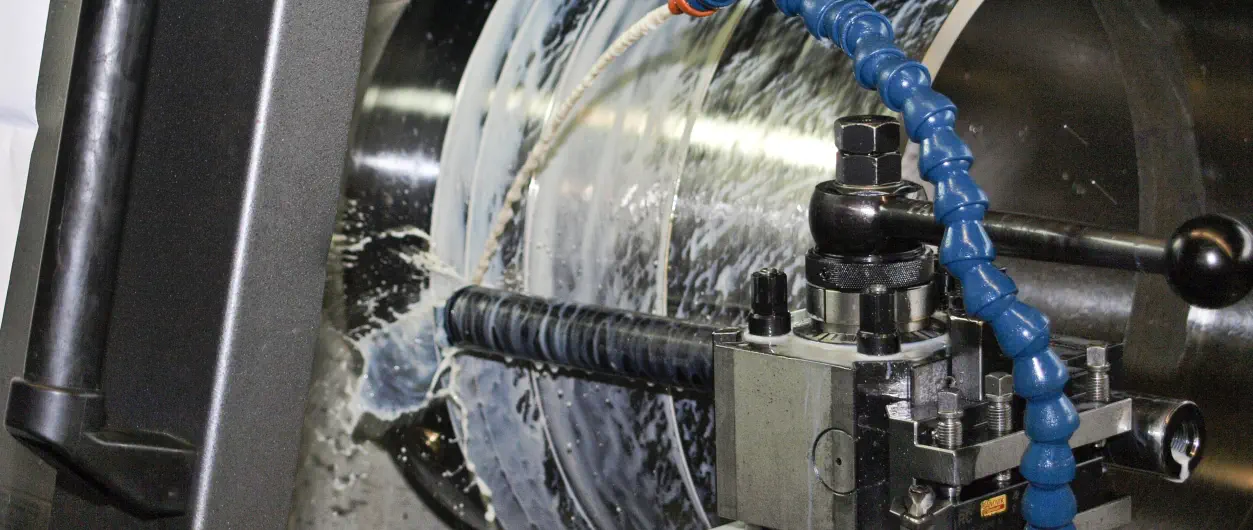

CNC-Machining Centre
• 3 Axis milling • Thread milling • Helix milling • Counter boring • CNC Lathe •Live Tooling •Travel of 300.0mm OD & 1100mm in length Other information • High production runs • Automatic Pallet Change • Automatic Tool ChangeDrilling
• Counter sinking • Tapping • Reaming
To contact our team please call or
email us:
Tel: +27 011 062 3200 Email: sales@generalprofiling.co.za Address: 31 Industrial Road Amalgam, Johannesburg 2000 South Africa
CAD-Team (Computer Aided
Design)
Computer-aided design (CAD) is the use of computer-based software to aid in design processes. CAD software is frequently used by different types of professionals, including engineers, architects, and designers. It allows them to create detailed 2D drawings and 3D models of real-world products before they are manufactured. CAD enables designers to visualize and analyze their designs, make modifications, and optimize them for various purposes. Here are some key points about computer-aided design (CAD): • CAD stands for computer-aided design and is a way to digitally create 2D drawings and 3D models of real-world products before they're ever manufactured. • CAD software allows designers to create design simulations of real-world goods and products in 2D or 3D. • It is widely used in various industries, including architecture, engineering, manufacturing, and product design. • CAD software provides tools and features that enable precise measurements, accurate modeling, and efficient design iterations. • With CAD, designers can easily make changes to their designs, explore different design options, and analyze the performance of their products. • CAD models can be used for visualization, virtual prototyping, simulation, and documentation purposes. • The use of CAD helps streamline the design process, reduce errors, improve productivity, and enhance collaboration among team members. In summary, computer-aided design (CAD) is a powerful tool that allows designers to create detailed and accurate digital representations of real-world products. It plays a crucial role in various industries by enabling efficient design processes and facilitating innovation.
Bending
Bending of parts to high standardsPlasma cutting
Clean elegant on the sideOXY Flame Cutting
Cutting up to 300mm thickLaser Cutting
Fiber laser cutting.OUR SERVICES.
cnc-laser cutting, cnc- flame cutting, cnc-plasma cutting, hd-plasma cutting, cnc-bending, cnc machining,cnc-rolling, chamfering and more. a whole suite of services.
